CQ-350 Forming Punching & Cutting machine

ID:CQ-350

Parameter

Application

DETAILED INFORMATION

Product Features:

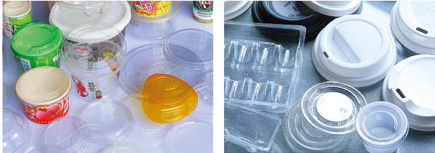

This machine is special designed for automatic forming, hole punching, cutting plastic sheet such as PVC, PS and PET. Machine’s formed product is cup cover, tray and another container. Products are widely used in Food, Medical, Daily use chemical, Metal and ect., industry.

This machine’s operation is simple and convenient, low power consumption, automatic counting.

Machine working flows: This machine fully-automatic running.

Heat forming → Hole punching → Cutting → Product discharging

Plastic sheet materials：PVC，PS，PET

Main technical data:

Cutting Time	15-35times/min
Power Supply	380V/220V 50Hz
Feed Distance Range	40-120mm
Max Forming Area	350mm×120mm
Max Forming Depth	50mm
Upper Forming Heating Power	2.0kw
Under Forming Heating Power	2.0kw
Motor Power	1.5kw
Air Pump Pressure	0.4-0.6Mpa
Air Pump Volume Flow	≧0.36³/min
Sheet(Thickness x Width)	0.1-0.6mm×350mm
Dimensions(L x W x H)	2650mm×900mm×1700mm
Weight	1200kg

All the information is for reference only. The products are subjected to change without notice.
